Graphite Electrode

Mainly used as conductive electrodes in steelmaking electric arc furnaces and refining furnaces, and also applied as conductive electrodes in industrial silicon furnaces, yellow phosphorus furnaces, corundum furnaces, etc. It has excellent conductivity, strong thermal shock resistance, and high mechanical strength.

Product Description

Size of graphite electrodes and allowable tolerance

Nominal DiameterActual Diameter(mm)Length(mm)Allowable tolerance(mm)Electrode diameter mmTorque N.m
mminchMax.Min.Low SpotLengthShort length
7537873721400/1600±100-27575100
100410398971400/1600100150
13051321271261400130200
15061541491461400/1600/1800150250
17571801741721400/1600175300
20082052001971600/1800200450
22592302252221600/1800225600
250102562512481600/1800250750
300123073022991600/1800/2000300900
350143573523491600/1800/20003501300
400164094034001600/1800/2000/22004001550
450184604544511600/1800/2000/22004501850
500205115055021600/1800/2000/22005002400
550225625565531800/2000/2200/24005502750
600246136076042000/2200/2400/27006003800
650266636596562000/2200/2400/27006504300
700287147107072000/2200/2400/27007005200
750307627587552000/2200/2400/27007506800
800328158118042000/2200/2400/27008008600


Size of 3 TPI taper-thread nipples and sockets


3 TPINominal DiameterSize of Nipple(mm)Size of Socket(mm)Thread P (mm)
mminchLarge Dia (D)Length (L)Medium Dia (d2)Small Dia (D1)Depth (S)
2259139.70203.2090.73131.27107.608.47
25010155.57220.00103.80147.14116.00
30012177.16270.90116.90168.73141.50
35014215.90304.80150.00207.47158.40
40016215.90304.80150.00207.47158.40
40016241.30338.70169.80232.87175.30
45018241.30338.70169.80232.87175.30
45018273.05355.60198.70264.62183.80
50020273.05355.60198.70264.62183.80
50020298.45372.60221.30290.02192.20
55022298.45372.60221.30290.02192.20


 Size of 4 TPI taper-thread nipples and sockets


4 TPINominal DiameterSize of Nipple(mm)Size of Socket(mm)Thread P (mm)
mminchLarge Dia (D)Length (L)Medium Dia (d2)Small Dia (D1)Depth (S)
75346.0476.2020.8039.7244.106.35
100469.85101.6040.3063.5356.80
130579.38127.0045.6073.0669.50
150692.08139.7056.2085.7675.90
1757107.95165.1068.10101.6385.55
2008122.24177.8080.00115.9294.90
2259139.70177.8097.46133.8094.90
25010152.40190.50108.00146.08101.30
30012177.80215.90129.20171.48114.00
35014203.20254.00148.20196.88133.00
40016222.25304.80158.80215.93158.40
40016222.25355.60150.00215.93183.80
45018241.30304.80177.90234.98158.40
45018241.30355.60169.42234.98183.80
50020269.88355.60198.00263.56183.80
50020269.88457.20181.08263.56234.60
55022298.45355.60226.58292.13183.80
55022298.45457.20209.65292.13234.60
60024317.50355.60245.63311.18183.80
60024317.50457.20228.70311.18234.60
65026355.60457.20266.79349.28234.60
65026355.60558.80249.86349.28285.40
70028374.65457.20285.84368.33234.60
70028374.65558.80268.91368.33285.40
75030406.40584.20296.42400.08298.10
75030406.40609.60292.19400.08310.80
80032431.80635.00313.36425.48323.50
80032431.80685.80304.89425.48348.90

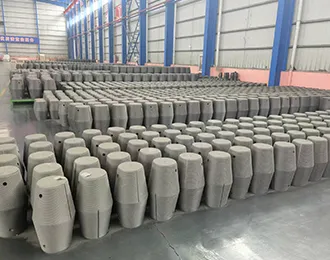

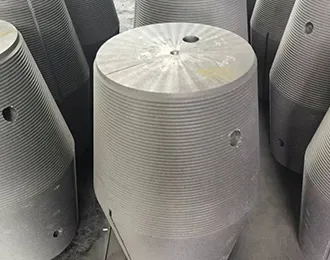

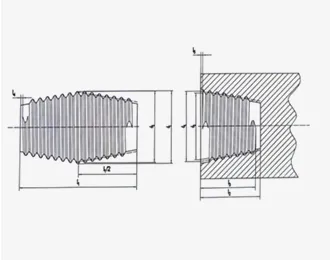

Socket and nipple of cone connection

  • Socket and nipple of cone connection
  • Socket and nipple of cone connection
  • Socket and nipple of cone connection
  • Socket and nipple of cone connection

Physical & Chemical Properties of Electrode and Nipple

  • DiameterPropertySpecific resistance ≤Transverse strength ≥Elastic modulus ≤Ash content ≤Bulk density ≥C.T.E ≤
    ElectrodeNippleElectrodeNippleElectrodeNippleElectrodeNippleElectrodeNippleElectrodeNipple
    μΩ·MMpaGpa%g/cm³10-6/℃
    Φ75-130FC7.2610.513.59.3140.50.51.61.722.82.6
    YB108.59.8139.3140.50.51.581.632.92.7
    Φ150-225FC7.56.510.813.59.3140.50.51.551.722.82.7
    YB10.58.59.8139.3140.50.51.521.632.92.7
    Φ250-300FC7.86.88.413.59.3140.50.51.551.722.82.7
    YB10.58.57.8139.3140.50.51.51.72.92.8
    Φ350-550FC86.88.413.59.3140.50.51.551.722.82.7
    YB10.58.56.4139.3140.50.51.51.72.92.8
    Φ600-700FC976.5159.3140.50.51.521.72.92.8

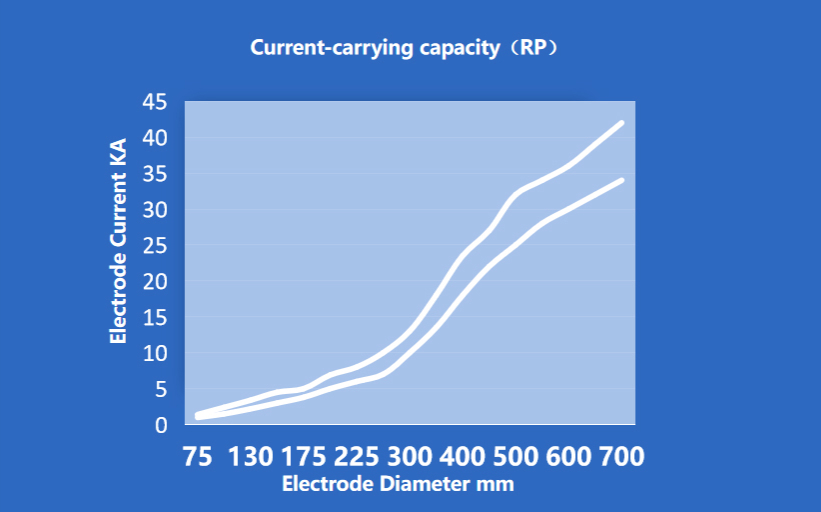

    RP Graphite Electrode
    Nominal DiametermmAllowable Current ACurrent Density A/cm2
    ACDCACDC
    751000-1400————22-31
    1001500-2400————19-30
    1302200-3400————17-26
    1503000-4500——16-25——
    1753800-5100——16-21——
    2005000-6900——15-21——
    2256000-8000——15-20——
    2507000-10000——14-20——
    30010000-13000——14-18——
    35013500-18000——14-18——
    40018000-23500——14-18——
    45022000-27000——13-17——
    50025000-32000——13-16——
    55028000-34000——12-14——
    60030000-36000——11-13——
    65032000-39000——10-12——
    70034000-42000——9-11——


    Graphite Electrode

  • DiameterPropertySpecific resistance ≤Transverse strength ≥Elastic modulus ≤Ash content ≤Bulk density ≥C.T.E ≤
    ElectrodeNippleElectrodeNippleElectrodeNippleElectrodeNippleElectrodeNippleElectrodeNipple
    μΩ·MMpaGpa%g/cm³10-6/℃
    Φ200-400FC6.86.210.51512160.30.31.681.742.32.1
    YB76.510.51412160.30.31.61.72.42.2
    Φ450-550FC7.56.310.81512160.30.31.651.742.32.1
    YB7.56.59.81412160.30.31.61.72.42.2
    Φ600-700FC7.56.38.51714160.30.31.61.722.42.2

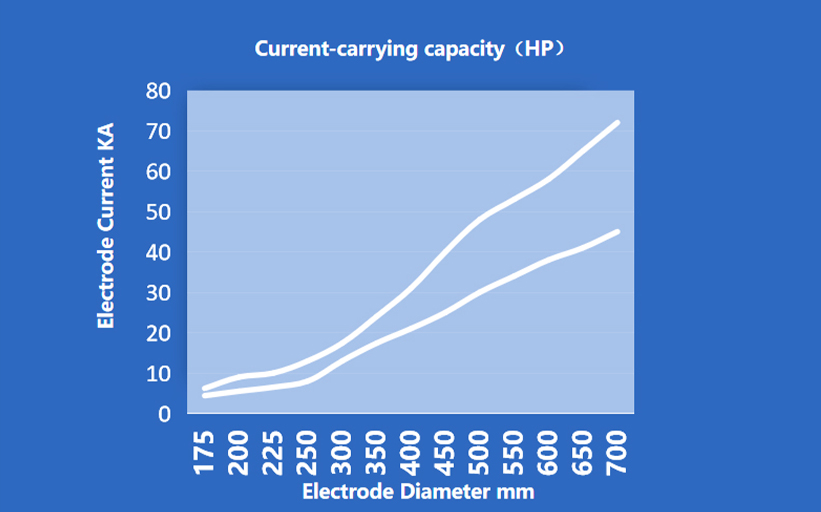

    HP Graphite Electrode
    Nominal DiametermmAllowable Current ACurrent Density A/cm2
    ACDCACDC
    1754400-6200——18-25——
    2005500-9000——18-25——
    2256500-10000——18-25——
    2508000-13000——18-25——
    30013000-17000——17-24——
    35017400-24000——17-24——
    40021000-31000——16-24——
    45025000-40000——15-24——
    50030000-48000——15-24——
    55034000-53000——14-22——
    60038000-58000——13-21——
    65041000-65000——12-20——
    70045000-72000——12-19——


    Graphite Electrode

  • DiameterPropertySpecific resistance ≤Transverse strength ≥Elastic modulus ≤Ash content ≤Bulk density ≥C.T.E ≤
    ElectrodeNippleElectrodeNippleElectrodeNippleElectrodeNippleElectrodeNippleElectrodeNipple
    μΩ·MMpaGpa%g/cm³10-6/℃
    Φ300-400FC65111714180.20.21.681.761.41.3
    YB6.25.510.51614180.30.31.641.71.51.4
    Φ450-550FC6.55.510.51714180.20.21.661.761.41.3
    YB6.55.5101614180.30.31.651.71.51.4
    Φ600-750FC5.84.3102314220.30.31.681.781.51.3

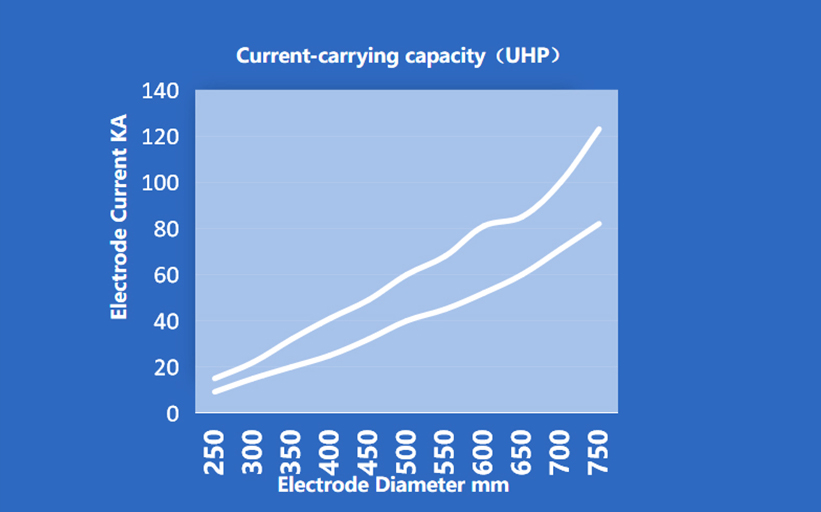

    UHP Graphite Electrode
    Nominal DiametermmAllowable Current ACurrent Density A/cm2
    ACDCACDC
    2509200-15000——21-30——
    30015000-22000——20-30——
    35020000-32000——20-32——
    40025000-41000——20-32——
    45032000-49000——20-30——
    50040000-60000——20-30——
    55045000-6800049000-7800018-2820-32
    60052000-8100058000-9300018-2820-32
    65060000-8500064000-10000018-2820-32
    70071000-10000079000-12000018-2720-30
    75082000-12300091000-13500018-2720-30
