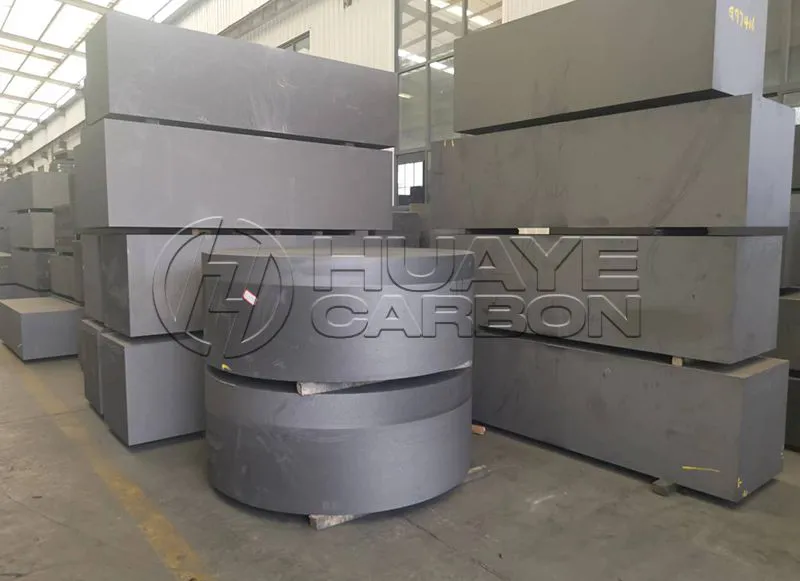

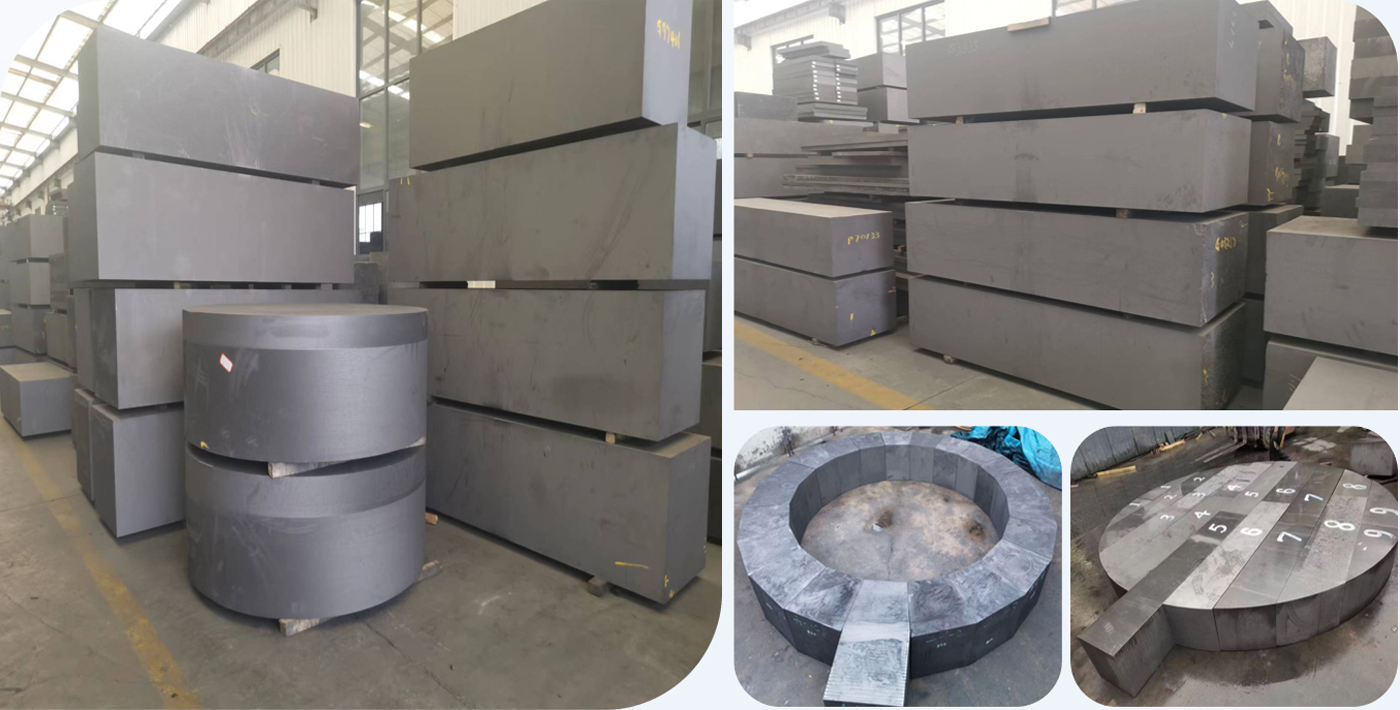

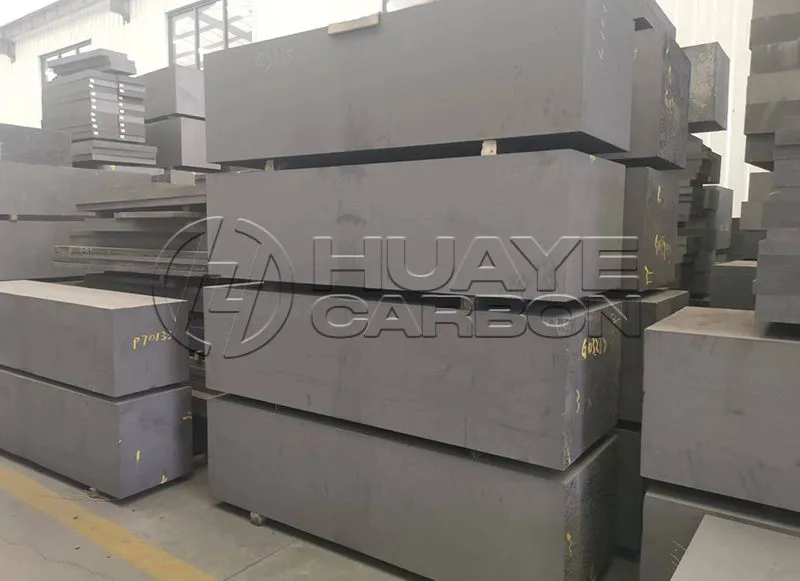

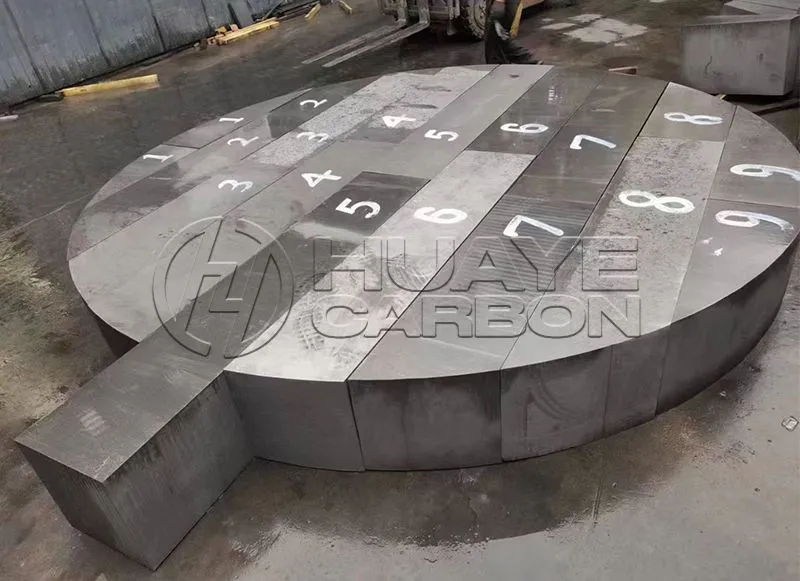

Graphite Block

Graphite Block is a series of coarse to medium grain vibration molded specialty graphite,available mainly as round and recttangular blocks with a max.

INQUIRE NOW NEXT PRODUCT

Product Description

Other Products

Graphite Electrode

For steelmaking and non-ferrous metal smelting LF\EAF furnace

Carbon/Soderberg Electrode Paste

Applied to the smelting of iron and steel, industrial silicon, yellow phosphorus, ferroalloys, titanium slag, brown corundum and other mineral furnaces.

Carbon Electrode

For Steel steel melting and industrial silicon, yellow phosphorus, ferroalloys, titanium slag, brown corundum and other submerged arc furnaces

Graphitized Petroleum Coke

Used as carburant or raw materials.Low sulfur, low nitrogen, and low ash content, high degree of graphitization, and high carbon recovery rate.

Cathode Carbon Block

Applied in the production and smelting fields of aluminum industry.

Calcined Scrap

Applied to various industrial furnace and used as smelting fuel, it has the advantages of high calorific value, low ash content, low sulfur, environmental protection, etc

Graphite Round

Application in: Molds, Furnace parts, Furnace linings, Heat shields for crystal pulling, Anodes for the electrolysis of metals etc.

Anode Carbon Block

Applied in the production and smelting fields of aluminum industry.

Graphite Electrode Scrap

Used as raw materials for products such as high graphite furnace walls, high graphite cathodes, and high graphite carbon electrodes

Calcined Petroleum Coke

Used as carburant or raw materials for other carbon product.

GSK
4004001800	8505001800
5005001800	9405081905/2900
6005001800	10003802000
6504071800/2200/2540	10005082000
6505001800	11001100400
6506001800	11005402000
8135081800/2540	12201270610
85040012570/1800
PSK
4004002100/2900	7105601580
5005002100/2400	8505002070
5006002100/2400	10004502000

Item	Unit	GSK	TSK	PSK
Grain Size	mm	0.8	2	2-4
Specific Resistance	μΩ·M	≤8	≤10	≤11
Bulk Density	g/cm3	≥1.75	≥1.70	≥1.60
Compressice Strength	Mpa	≥33	≥30	≥28
Flexural Strength	Mpa	≥14	≥13	≥9
Ash Content	%	≤0.2	≤0.3	≤0.5
CTE	10-6/K	≤3.4	≤2.8	≤2.6
Thermal Conductivity（100℃）	W/m.k	≥125
1. The Specific Resistance, flexural strength, CTE, and thermal conductivity are parallel numerical values. 2. The four point method is used for flexural strength. 3. Ash content can be purified to 30ppm.
