Home / Products / Carbon Electrode

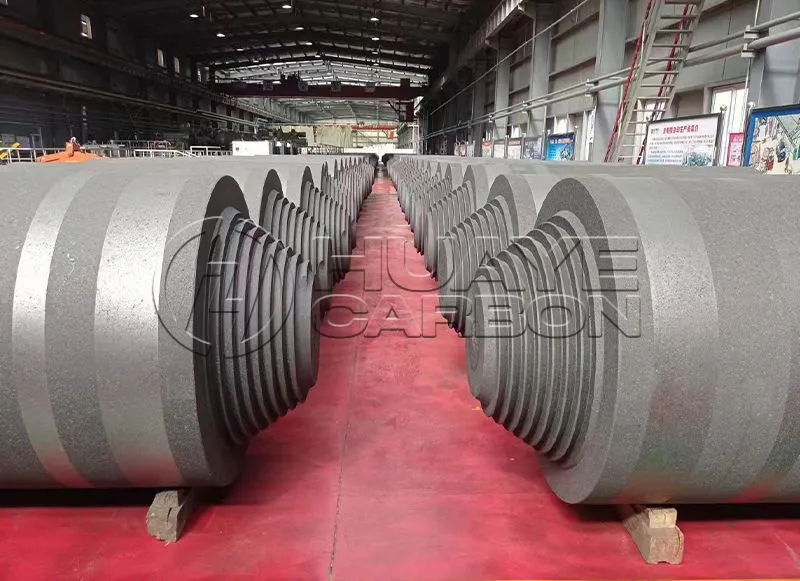

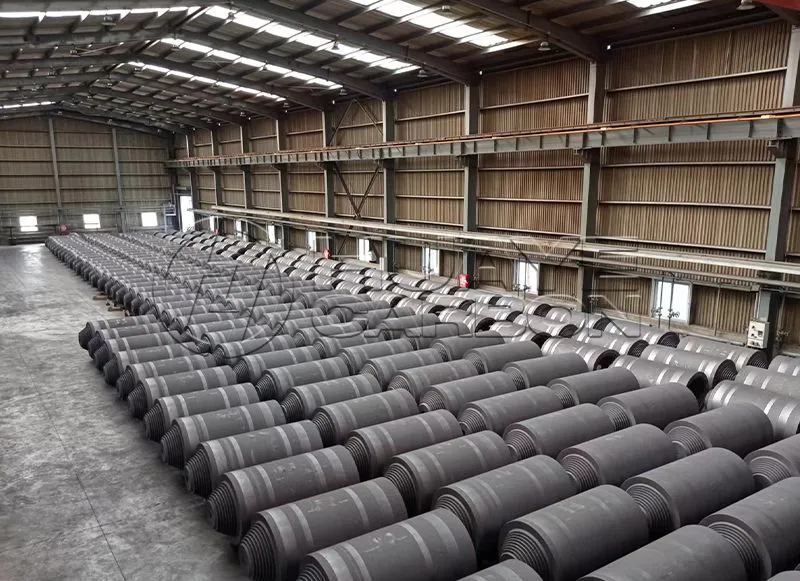

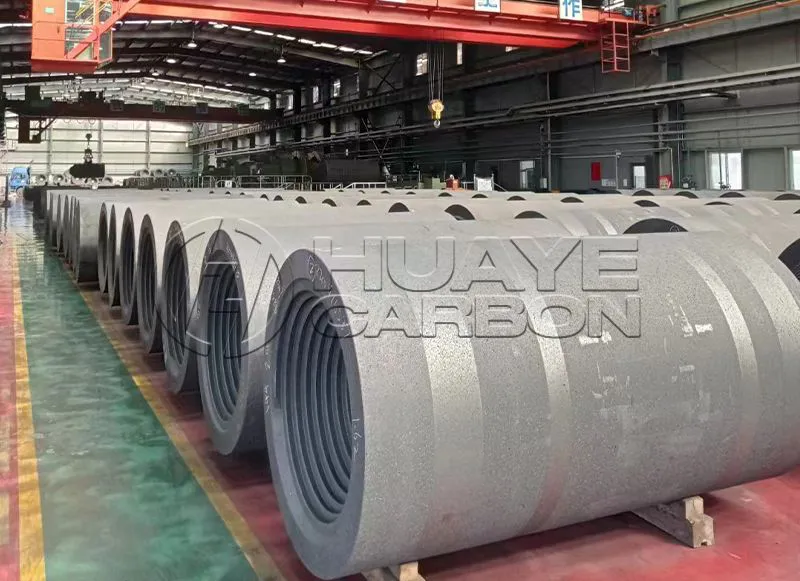

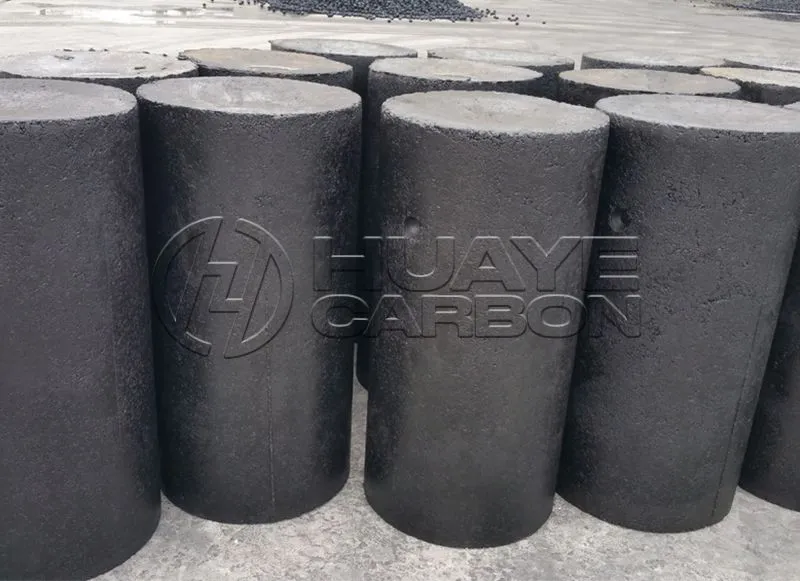

Carbon Electrode

Large-sized diameter carbon electrode are divided into S-grade and G-grade. Suitable for the smelting and production of iron and steel smelting, industrial silicon, yellow phosphorus, ferroalloys, titanium slag, brown corundum and other mineral heat furnaces.

Product Description

Product Description

Large size (RP) physical and chemical properties & current load


Large size diameter graphite electrode (RP)
Physical and chemical properties
ItemUnitNominal diameter mm
Φ650-Φ750Φ780-Φ960Φ1005-Φ1310
Specific resistanceElectrodeμΩ·M12.013.015.0
Nipple7.57.57.5
Transverse strengthElectrodeMpa6.05.25.0
Nipple13.013.013.0
Elastic modulusElectrodeGpa12.012.012.0
Nipple14.014.014.0
C.T.EElectrode10-6/℃2.92.92.9
Nipple2.82.82.8
Bulk densityElectrodeg/cm31.581.581.56
Nipple1.681.681.68
Ash contentElectrode%0.50.50.5
Nipple


Electrode Diameter mmAllowable max current AAllowable max current density A/cm²
Φ6504310013.0
Φ7504620012.0
Φ7805730012.0
Φ8006030012.0
Φ8506240011.0
Φ9006990011.0
Φ9607240010.0
Φ10057920010.0
Φ1020735009.0
Φ1060794009.0
Φ1100855009.0
Φ1146928009.0
Φ12721016008.0
Φ13101077708.0


Cases Study


Carbon Electrode

  • ItemUnitS grade carbon electrode
    Φ500-Φ700Φ750-Φ960Φ1020-Φ1400
    Specific  resistanceμΩ·M≤45≤45≤45
    Bulk  Densityg/cm3≥1.55≥1.55≥1.55
    Transverse strengthMpa3.5-7.53.5-7.53.5-7.0
    Compressive strengthMpa≥20.0≥20.0≥19.0
    C.T.E10-6/℃3.2-4.83.2-4.83.2-4.8
    Ash  Content%≤2.5≤2.5≤2.5


    Electrode diameter mmS grade carbon electrode
    Allowable Current ACurrent Density A/cm²
    780315006.6
    800331006.6
    850374006.6
    870380006.4
    900406006.4
    920425006.4
    960463006.4
    1005499006.3
    1020506006.2
    1060546006.2
    1100579006.1
    1146628006.1
    1205695006.1
    1250711005.8
    1272737005.8
    1305749005.6
    1321766005.6
    1355777005.4
    1400800005.2

  • ItemUnitG grade carbon electrode
    Φ500-Φ700Φ750-Φ960Φ1020-Φ1400
    Specific  resistanceμΩ·M≤38≤38≤40
    Bulk  Densityg/cm3≥1.58≥1.58≥1.58
    Transverse strengthMpa4.0-7.54.0-7.54.0-7.5
    Compressive strengthMpa≥20.0≥20.0≥19.0
    C.T.E10-6/℃3.0-4.63.0-4.63.0-4.6
    Ash  Content%≤2.0≤2.0≤2.0


    Electrode diameter mmG grade carbon electrode
    Allowable Current ACurrent Density A/cm²
    780362007.6
    800381007.6
    850431007.6
    870439007.4
    900470007.4
    920491007.4
    960535007.4
    1005570007.2
    1020579007.1
    1060626007.1
    1100664007.0
    1146721007.0
    1205798007.0
    1250822006.7
    1272851006.7
    1305869006.5
    1321889006.5
    1355894006.2
    1400923006.0

Carbon/Soderberg Electrode Paste

Applied to the smelting of iron and steel, industrial silicon, yellow phosphorus, ferroalloys, titanium slag, brown corundum and other mineral furnaces.

READ MORE

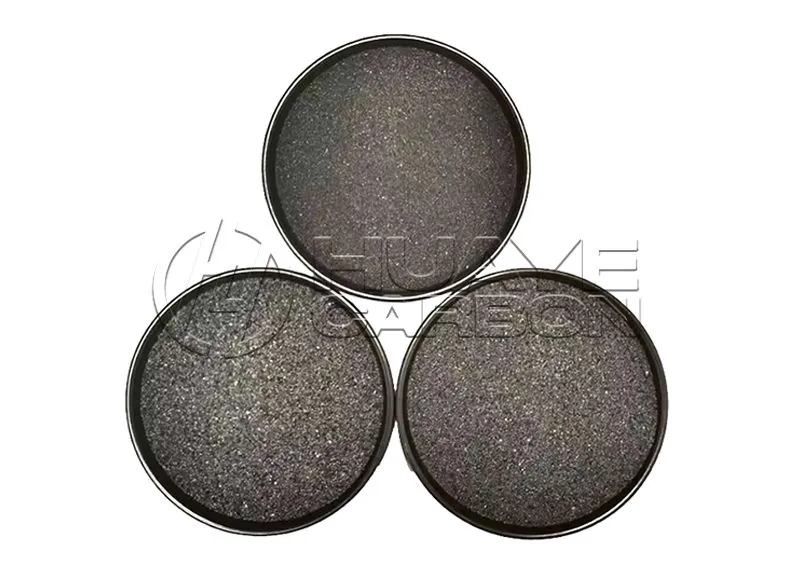

Graphite Electrode Powder

Applied to carburizers or raw materials. Low sulfur, low nitrogen, low ash, high degree of graphitization, and high carbon recovery rate.

READ MORE

Graphitized Petroleum Coke

Used as carburant or raw materials.Low sulfur, low nitrogen, and low ash content, high degree of graphitization, and high carbon recovery rate.

READ MORE

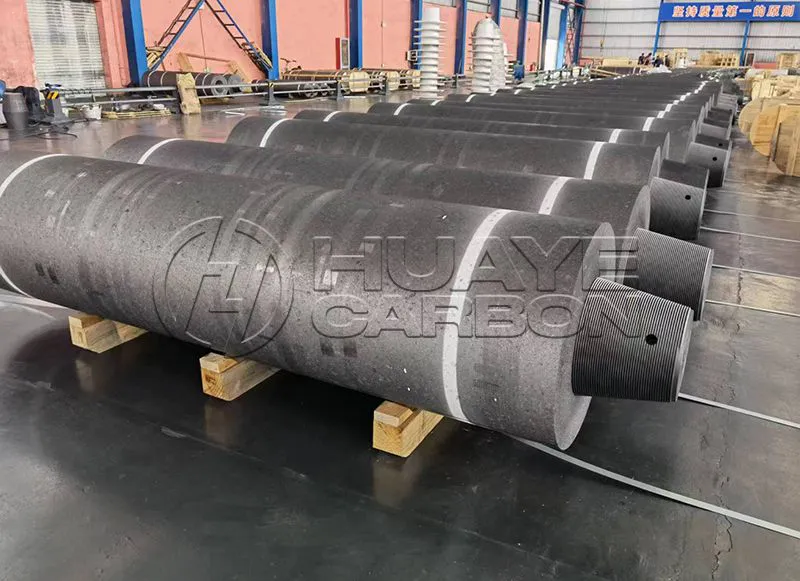

Graphite Electrode

For steelmaking and non-ferrous metal smelting LF\EAF furnace

READ MORE

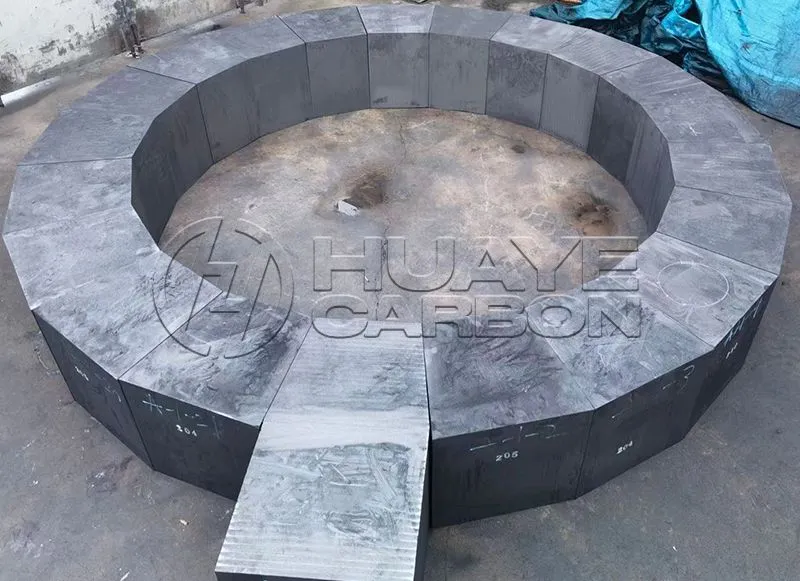

Graphite Block

Application in: Molds, Furnace parts, Furnace linings, Heat shields for crystal pulling, Anodes for the electrolysis of metals etc.

READ MORE

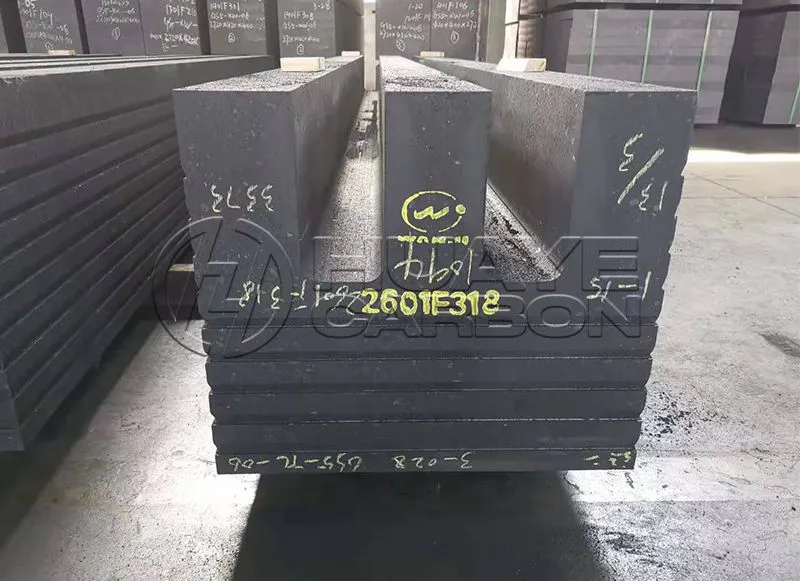

Cathode Carbon Block

Applied in the production and smelting fields of aluminum industry.

READ MORE

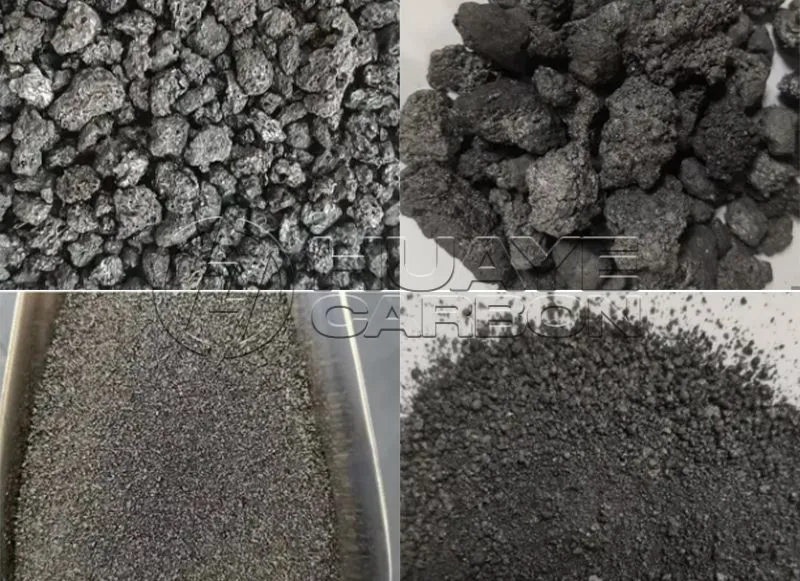

Calcined Petroleum Coke

Used as carburant or raw materials for other carbon product.

READ MORE

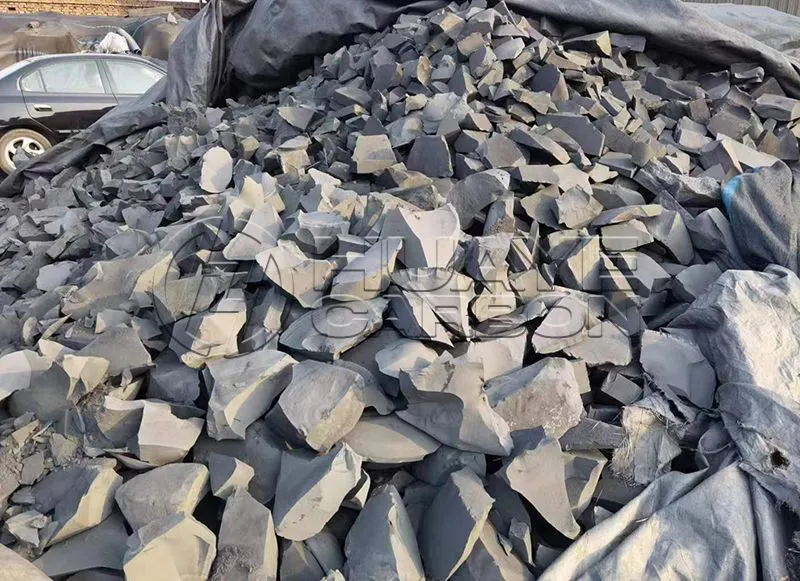

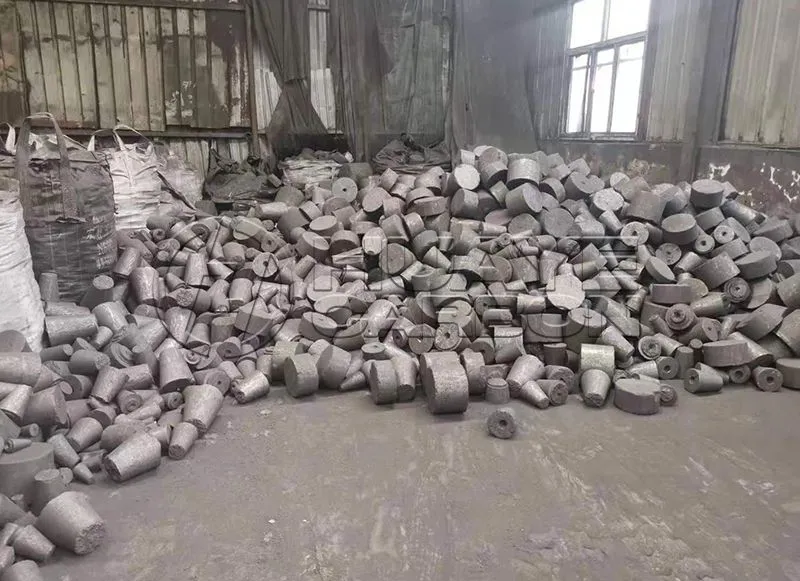

Graphite Electrode Scrap

Used as raw materials for products such as high graphite furnace walls, high graphite cathodes, and high graphite carbon electrodes

READ MORE

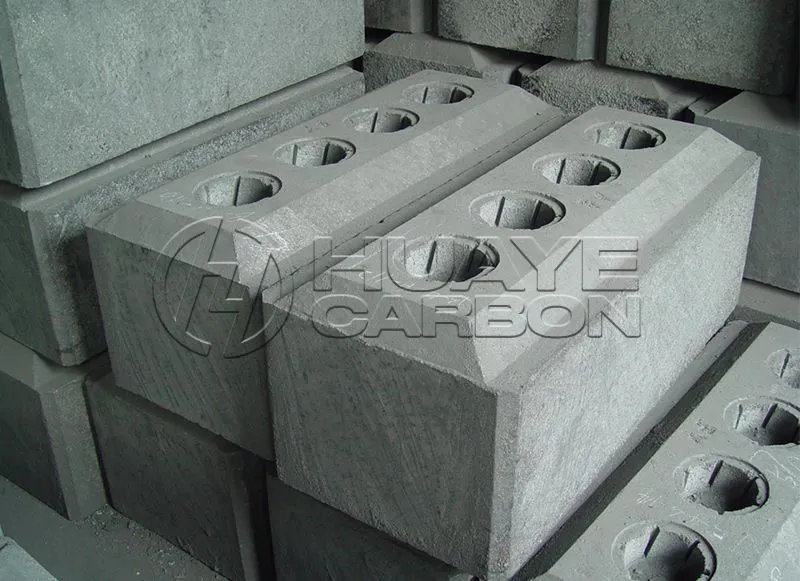

Anode Carbon Block
